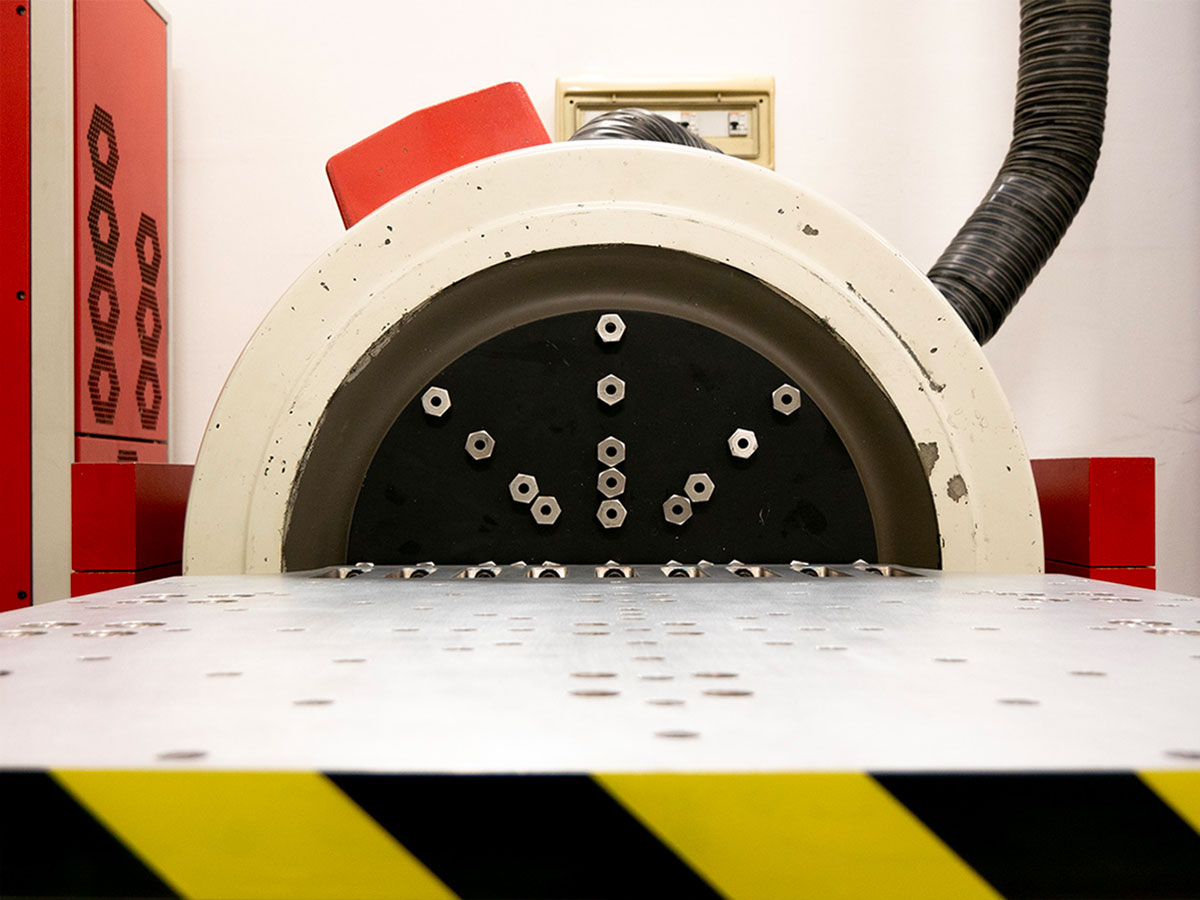

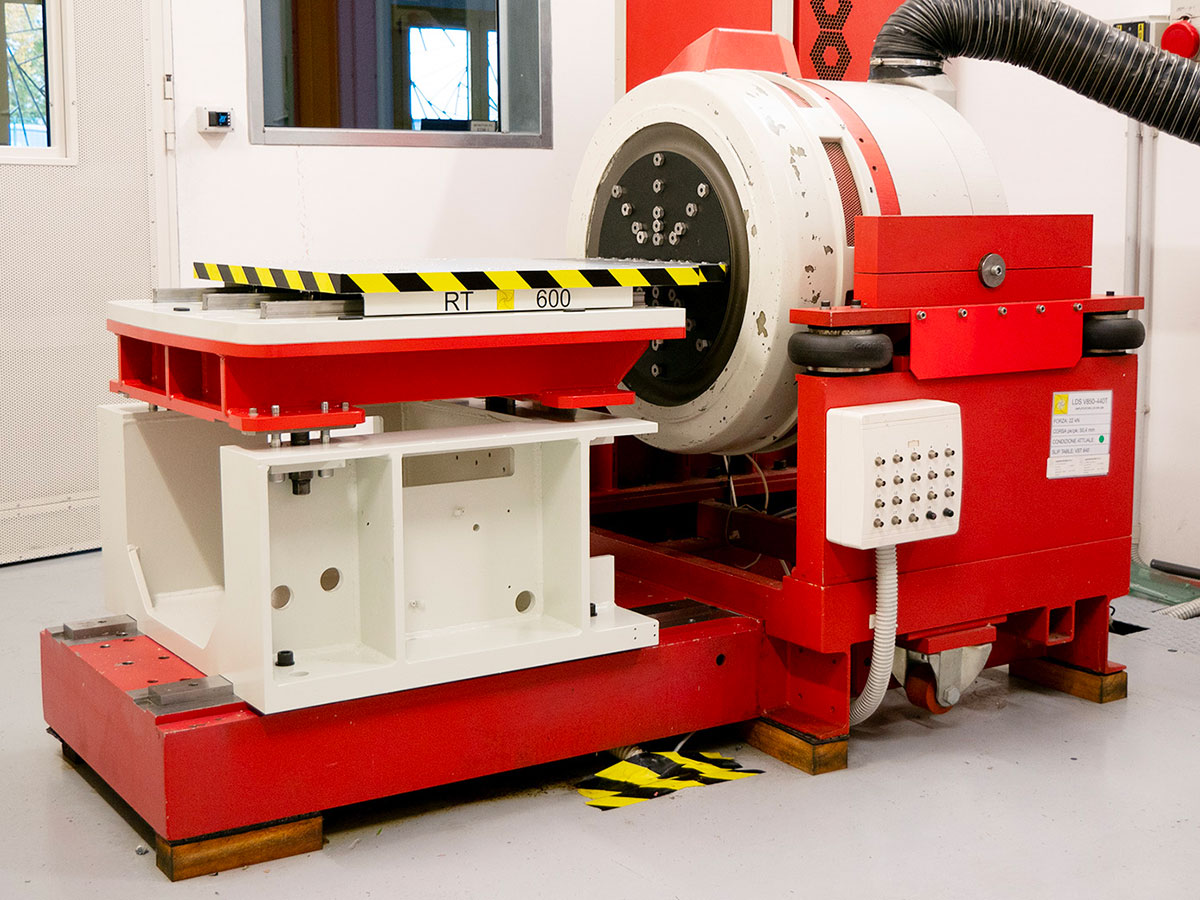

2 x Shaker LDS V850-440T with slip table

Electrodynamic shakers for vibration tests equipped with slip tables for the execution of tests on the three axes.

The shakers come with two armors, the smaller one is used for high levels of vibration.

Very flexible system, ideal for many types of tests and adaptable to a very wide range of products.

---

Features and performance

• Sine force (peak): 22 kN
• Maximum stroke: 50,8 mm (pk-pk)
• Maximum acceleration: 125 g pk sine / 60 g rms random
• Maximum frequency: 3000 Hz
• Armature size: 240 / 440 mm ampliabile con expander
• Slip table dimensions: 640 x 640 and 750 x 750 mm
• Controller channels: up to 64
• Test types: Sine, Random, Sine on Random Shock, Dwell,...
