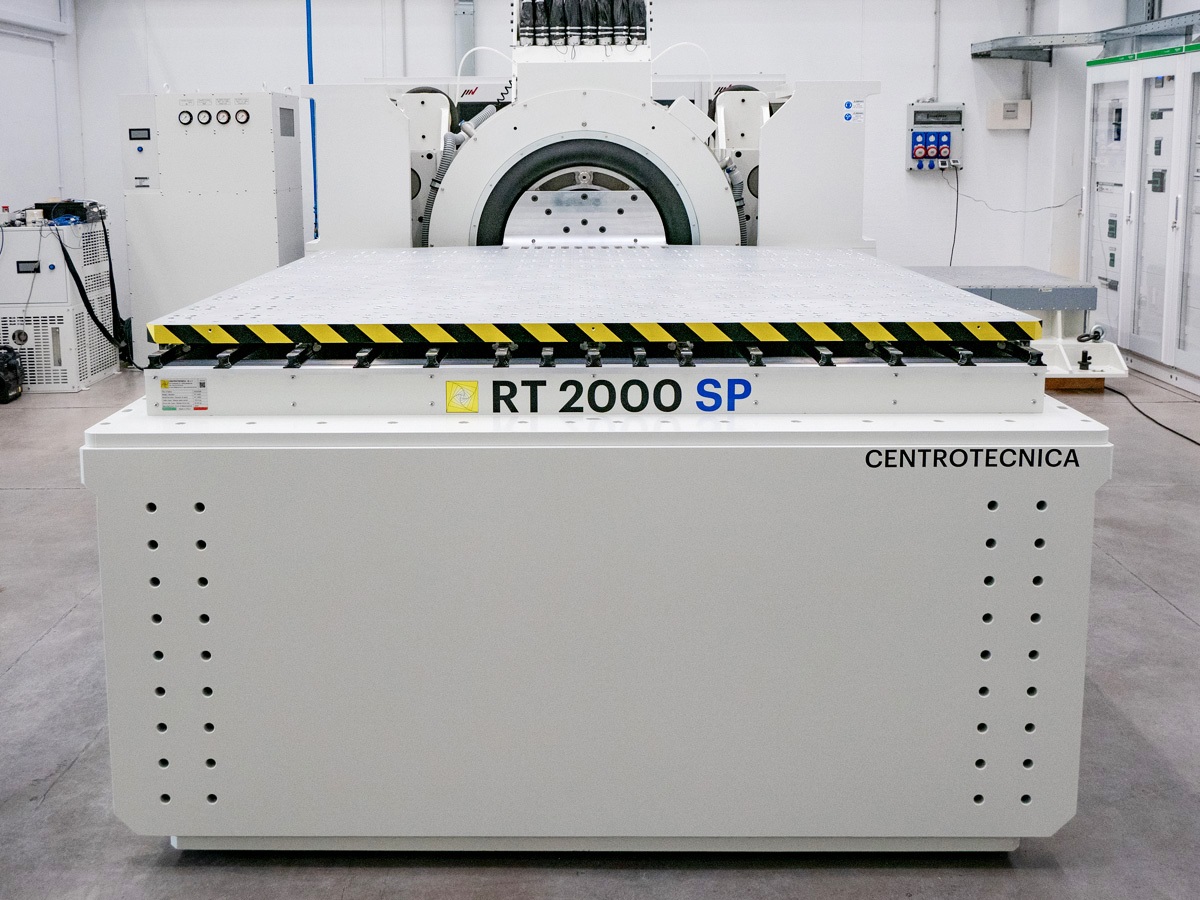

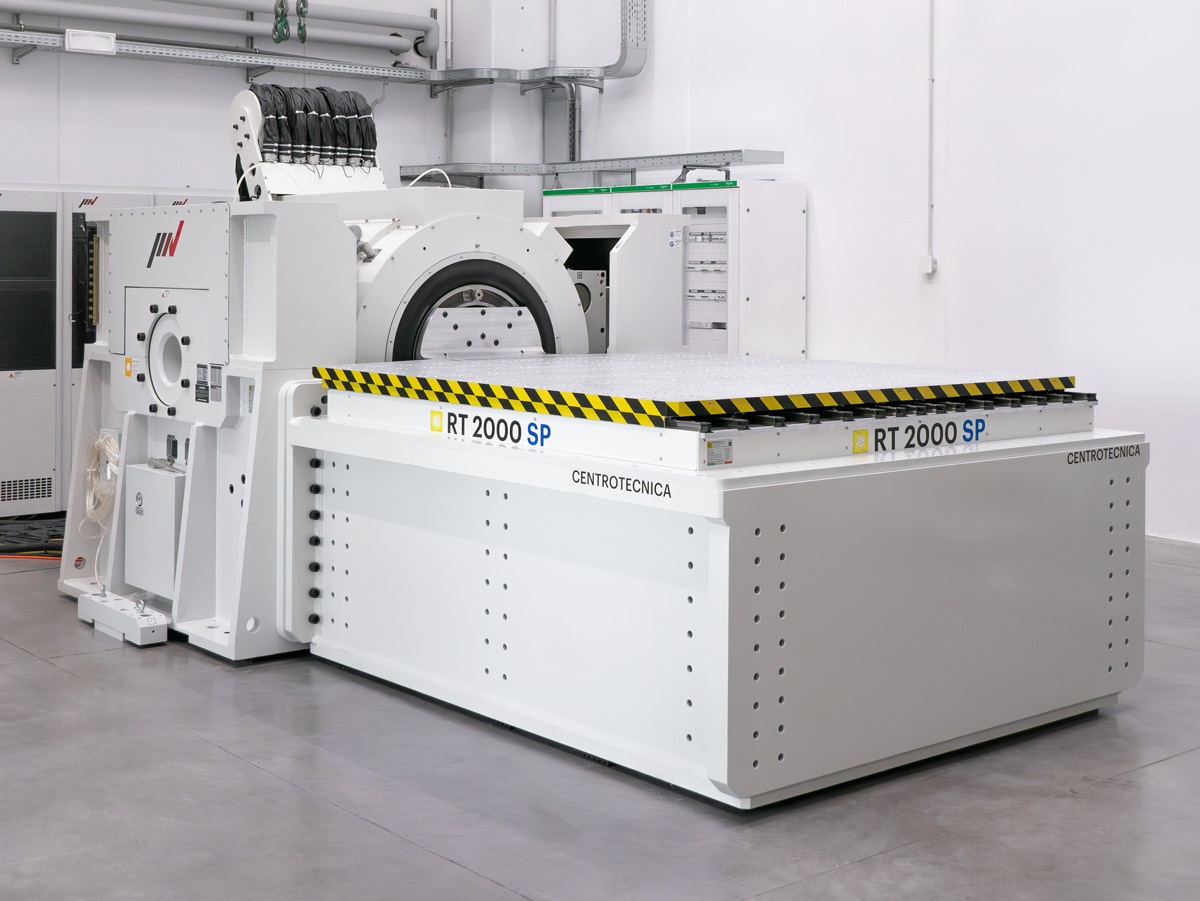

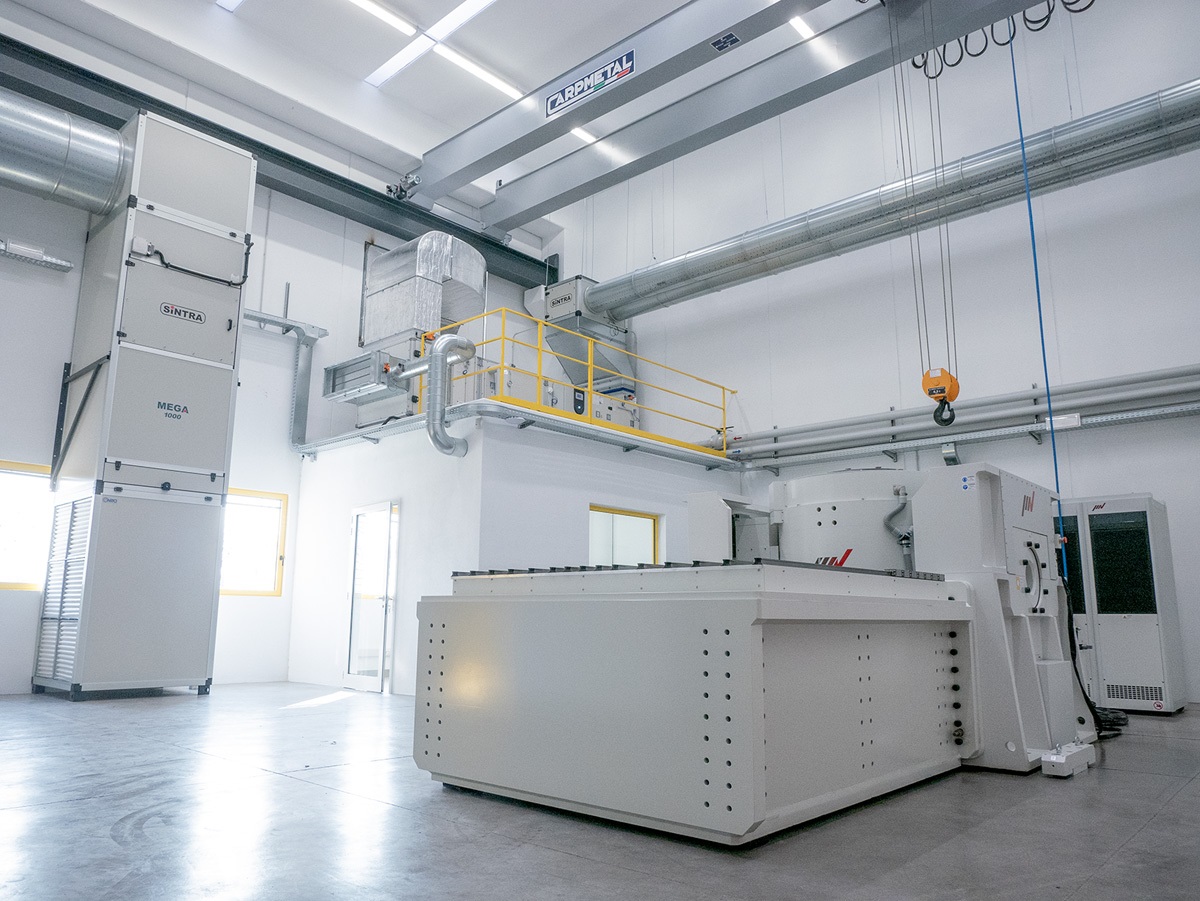

IMV K200 with slip table in ISO 8 clean room

Very powerful electrodynamic shaker equipped with head expander, guided head expander and slip table RT-SP (space variant) with interchangeable plate.

The capability to operate in ISO 8 clean room makes it well suitable for space testing on large mechanical components or entire satellites.

The K200 high force and maximum payload make it an excellent testing machine for railway sector and generally speaking for heavy or bulky samples.

---

Features and performance

• Sine force (peak): 200 kN
• Shock force: 400 kN
• Max speed sine / shock: 2,0 / 2,4 m/sec
• Max displacement (pk-pk): 76,2 mm
• Max frequency: 2000 Hz
• Armature dimensions: 650 mm
• Head expander up to: 2000 x 2000 mm
• Guided head expander up to: 1600 x 1200 mm
• Slip table up to: 2000 x 2000 mm
• Max payload: 4000 kg
